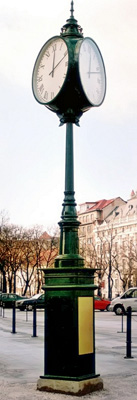

Post clock type Three-sided

The main parts of the post clock:

• Structural concrete with the dimensions of 700x700x260 mm
• Base unit/access panel:
  • welded steel plates with a removable access panel
  • protruding profiles, welded bands, smooth finished edges
  • Sides: steel plate of min. 20 mm thickness
• Cast iron post:
  • Material: grey cast iron
  • Height: 2800 mm
  • Maximum width: 390 mm
• Shaped connecting plate between the clock and the post: milled aluminium 600x100 mm spacer
• Clock - material:
  • Frame: steel profiles
  • Sheathing: steel plates

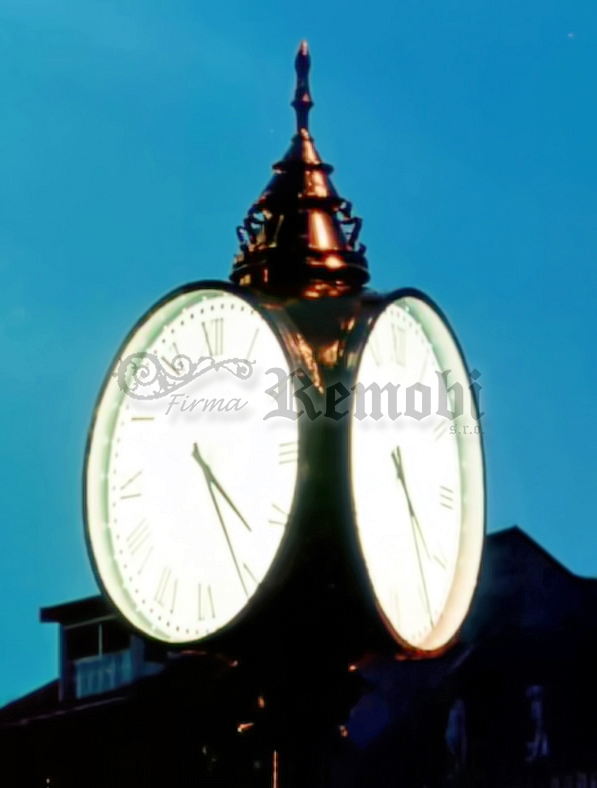

  • Glassed-in clock:
    • 1100 mm in diameter
    • tempered safety glass set in steel rubber-gasketed frame
• Finial: 600x700 mm milled aluminium.

MOBATIME clock featuring:

• Three independent timepieces SAM140 clock work with hour and minute shafts
  • Dimensions: 38,5x95x132 mm
• DRIVER: 1 piece
• DCF84: 1 piece, attached to DRIVER, and used to synchronise the clock - summer and winter time remote control. DCF84 is scanned by a transmitter, located in Mainflingen, 24 km to the south-east of Franfurt am Mein. The transmitter sends a long waves signal of 77,5 kHz, and power of 50 kW, giving a range of approximately 2000 km radius.
• Battery-powered emergency power unit ensures continuous operation of the main clock even during power cuts. 220 V supply via a fuse.
• Eye-catching Roman numeral dial 1100 mm in diameter - made from shatterproof white acrylate.
• Three-tube lighting: suitable for low temperatures, 220 V supply via a fuse.
